VEVOR Mini Metal Lathe Brushless Machine 7''x16'' / 180mm*400mm 800W Digital Display Continuously Variable Metalworking Turning

You must be logged in to view the price.

Ships From: United States

Please log in to add items to your cart.

Request A Quote Request Financing
  • Return Policy
  • Customer Support
  • Reliable Delivery

About the Product

Warranty: We will provide a one-year warranty and solve all your after-sales problems!

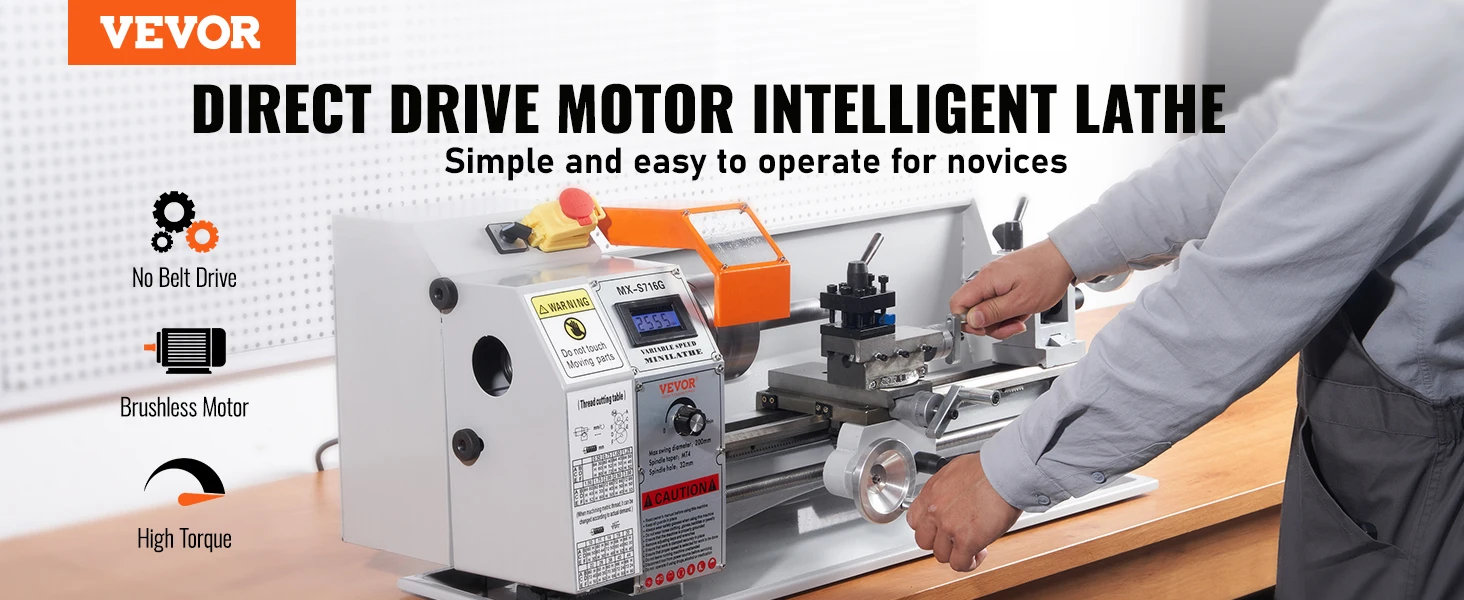

Direct Drive Motor Metal Lathe
Are you ready to get more done? Our mini metal lathe measures 7'' x 16'' and features an 800W direct drive motor, no maintenance, and no belt drive. Upgraded metal gears and handwheels extend the service life and are simple to operate even for the novice. VEVOR benchtop metal lathe is specifically designed for creating complex and fine parts.

  • Direct Drive Motor

  • Built to Last

  • Continuously Variable

  • Widely Used

  • Security Comes First


Tough Equipment & Tools, Pay Less
VEVOR is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, VEVOR is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, VEVOR's products are sold in more than 200 countries and regions with 10 million plus members worldwide.
Why Choose VEVOR?

  • Premium Tough Quality

  • Incredibly Low Prices

  • Fast & Secure Delivery

  • 30-Day Free Returns

  • 24/7 Attentive Service

Friendly Note:

Some buyers' addresses or postcodes cannot be delivered by our couriers. In such cases, we will contact the customers to cancel the order and give them a full refund. I hope you can understand and accept our approach. If not, please do not place an order. Thank you for your understanding and kindness.


Key Features
Protection Devices
Our mini metal lathe machine is designed with a probe window-type shield and power-off protection, ensuring more secure processing.
Aluminum Alloy Handwheel
The aluminum alloy handwheel is equipped with a high-precision scale for easy operation and is designed to create complex and fine parts.
Automatic Feed Screw
The V-shaped precision steel guide with the automatic feed screw and high strength ensures the parallelism of the main axis and lathe body.

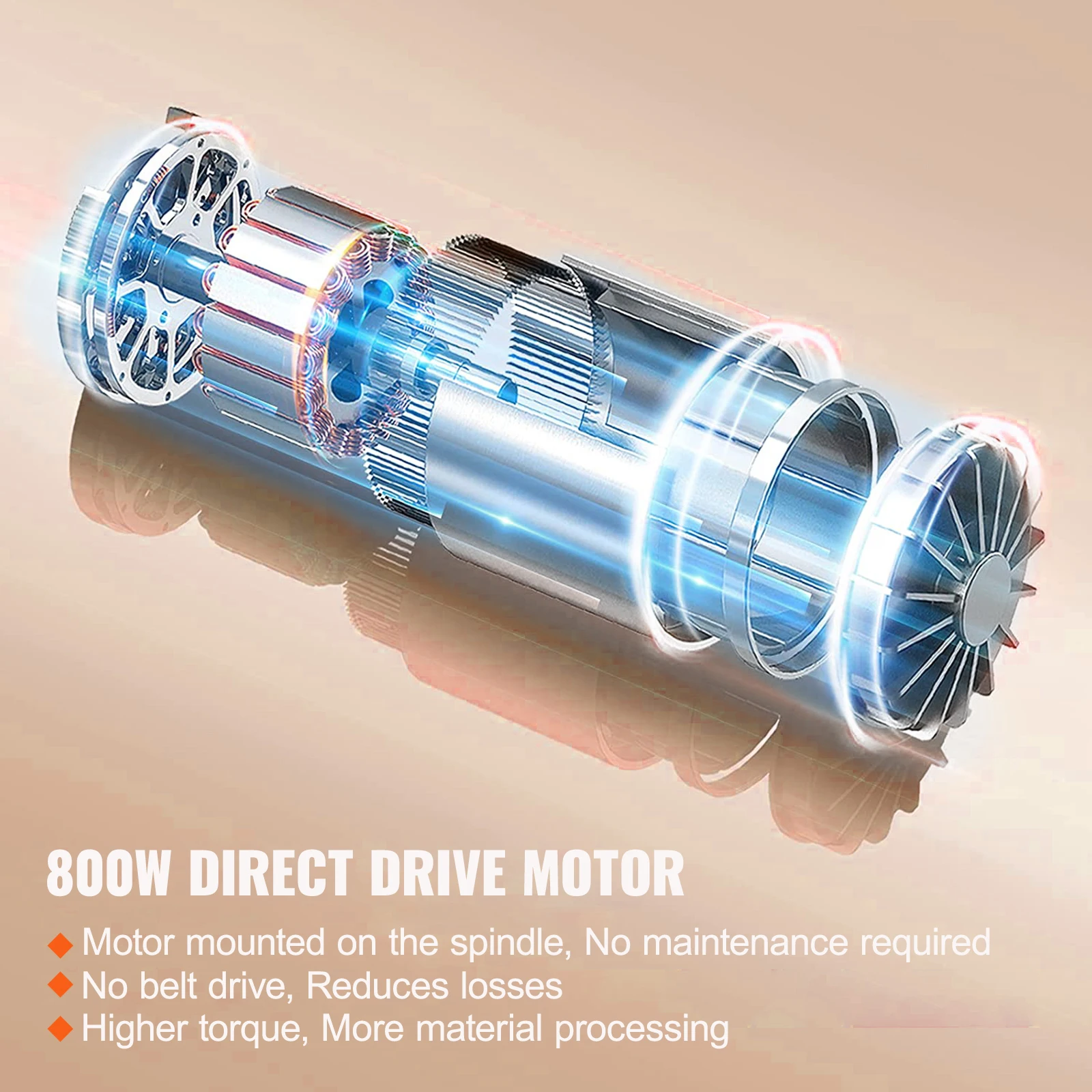

High-Performance Motor
The 800W brushless motor not only provides stable and sufficient power but also saves time by avoiding the need for brush replacements.
Wide Application
The 7'' x 16'' metal lathe is designed for complex and fine parts and accommodates the processing of various materials.
Enhanced Security
The metal lathe variable has an emergency stop switch, overload protection, chuck cover power off switch, and main control panel security switch.
7''x16'' Mini Metal Lathe

  • Main Material: HT200 Cast Iron

  • Lifespan: 3 Years

  • Spindle Speed: 150-2500 RPM

  • Hole Through Spindle Diameter: 32 mm / 1.26 in

  • Spindle Taper: MT5

  • Tail Stock Taper: MT2

  • Motor Power: 800W

  • Voltage: 110V, 60 Hz for US CA MX; 220V, 50Hz for EU RU AU

  • Chuck Diameter: 100 mm / 3.93 in

  • Net Weight: 39 kg / 85.98 lbs

  • Product Dimensions(L x W x H): 800 x 340 x 360 mm / 31.5 x 13.4 x 14.2 in

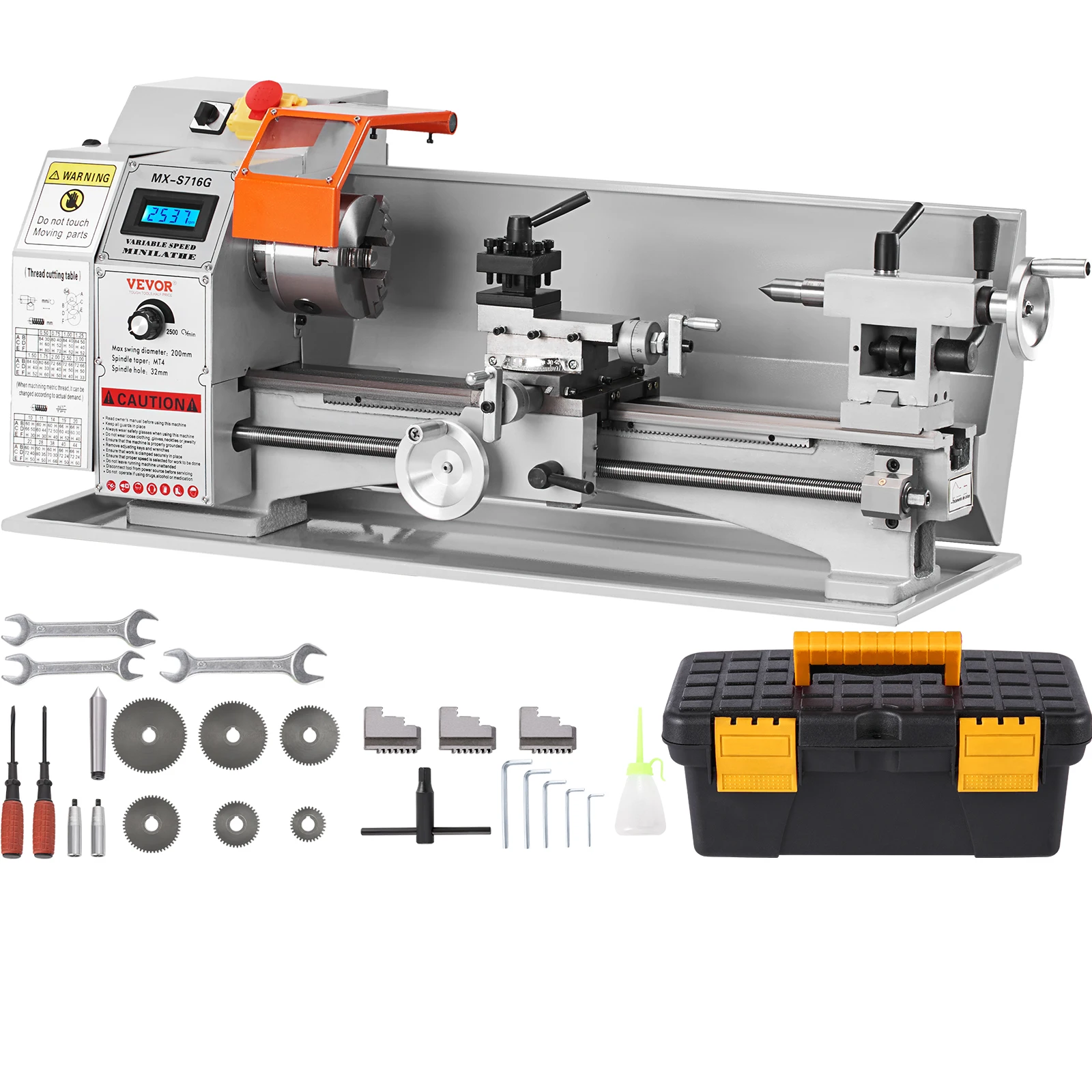

Package Content

  • 1 x Oil Pan

  • 1 x Oiler

  • 2 x Open Spanner(6-10, 13-16)

  • 1 x Cross Screwdriver

  • 1 x Fiat Screwdriver

  • 1 x Hex Socket Wrench

  • 1 x Dead Center

  • 1 x Pulley Set

  • 1 x Tool Box


Features & Details

  • 【Direct Drive Motor】: The mini metal lathe machine adopts a direct drive motor, no belt drive, and no need to replace the belt. 800W brushless motor that provides more power and avoids the need for brush replacements, saving time and effort.

  • 【Built to Last】: The mini metal lathe is built to last with high-quality HT200 cast iron. They come equipped with wear-resistant and strong metal gears and aluminum alloy handwheels, ensuring a longer service life.

  • 【Continuously Variable】: Features a spindle that can turn in both forward and reverse directions with 150-2500 RPM continuously variable speed range. It also has intelligent electric speed controls and a digital display, allowing for convenient data reading.

  • 【Widely Used】: 7'' x 16'' metal lathe machine can be used for processing precision parts and models. A wide range of turning pitches can create 19 kinds of threads, 9 kinds of the metric system (0.5-3 mm), and 10 kinds of the imperial system (10-44 TPI).

  • 【Security Comes First】: Our power metal lathes have multiple security features in case of emergency, ensuring operator security. These include an emergency stop switch, overload protection, chuck cover power off switch, and a main control panel security switch.
