110V 220V Filler Shampoo Lotion Cream Honey Juice Sauce Jam Gel Filler Paste Filling Machine Pneumatic Piston Filling Machine

Feature

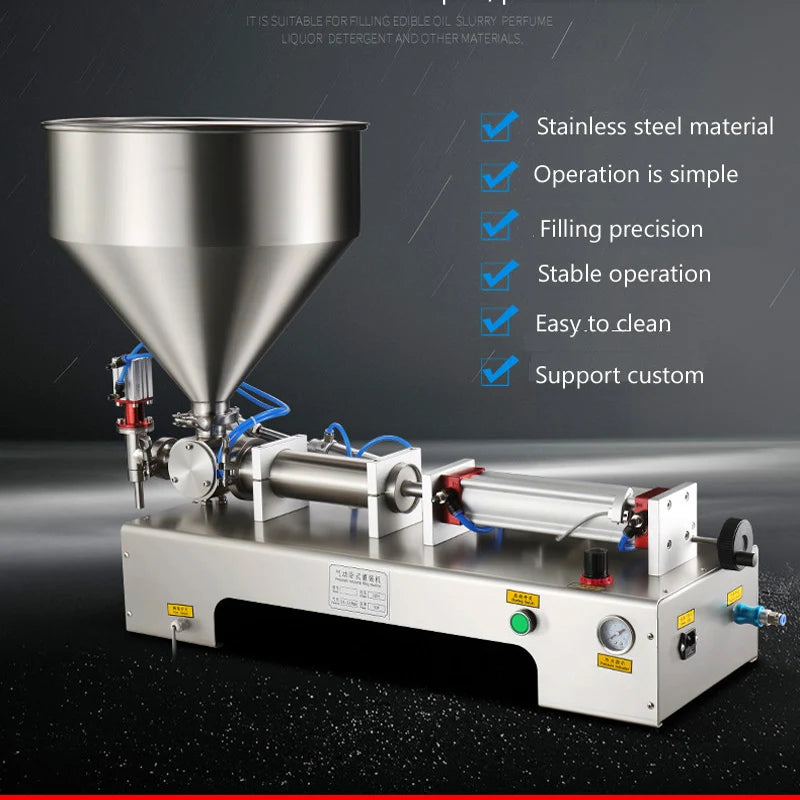

The series filling machine reasonable structure, compact models, reliable, accurate, easy to operate, the power section pneumatic structure, material contact parts are 316L stainless steel materials, in line with GMP certification requirements. According to user needs in a range of models adjusted filling volume and filling speed, high filling accuracy. Filling head adopts anti-drip and lifting filling device.
The filling machine main power source for the gas, customers must bring their own air compressor equipment.

Product Description

1, the machine uses compressed air to control the drive, it is particularly suitable for use in explosion-proof requirements and humid environment, with a high degree of safety

2, the use of pneumatic control, and the use of mechanical positioning, so high filling accuracy, precision can be controlled at 1%

3, using the screw, counter, filling volume adjustment so precise, and can be directly reflected in digital form

4. In case of need the emergency stop, just press the emergency stop switch, automatic piston back to the initial position, filling stop

6, equipment failure rate is very low

The series of quantitative liquid filling machine is equipped with a special filling valve tee, under reciprocating piston, to the effect of the filling, the piston tic, inlet valve open feed, discharge valve is closed; piston driven feed valve is closed, the valve open for filling

Technical parameters

Power: 110V/220V 50-60Hz

Power:10W

Filling accuracy: ≤ ± 0.5%

Filling speed: 5-35 bottles / min

Equipped with air pressure: 0.4-0.9MPa

With gas consumption: ≥0.1m3 / min

Filling range:5-100ml/10-300ml/50-500ml/100-1000ml/500-2500ml/1000-5000ml

Pneumatic Operation, the air compressor should be prepared by the buyer. The requirement of the air compressor:

Pressure: 0.4-0.9MPa;

Power: 1100W;

Gas Capacity: >40L

Machine filling nozzle diameter range of 4-12mm default delivery diameter 8mm

Can be customized 12-22mm diameter, need to customize please contact us

Warranty and Guarantee :

The machine with 2 years warranty, if there is something wrong with it, please contact us without hesitation.
