VEVOR Laser Engraving Machine Chiller Thermolysis Industrial Water Cooler 60W-130W CO2 Glass Tube CNC Spindle Cooling

You must be logged in to view the price.

Color: Green/Black
Ships From: Poland

Please log in to add items to your cart.

Request A Quote Request Financing
  • Return Policy
  • Customer Support
  • Reliable Delivery

About the Product

Warranty: We will provide a one-year warranty and solve all your after-sales problems!

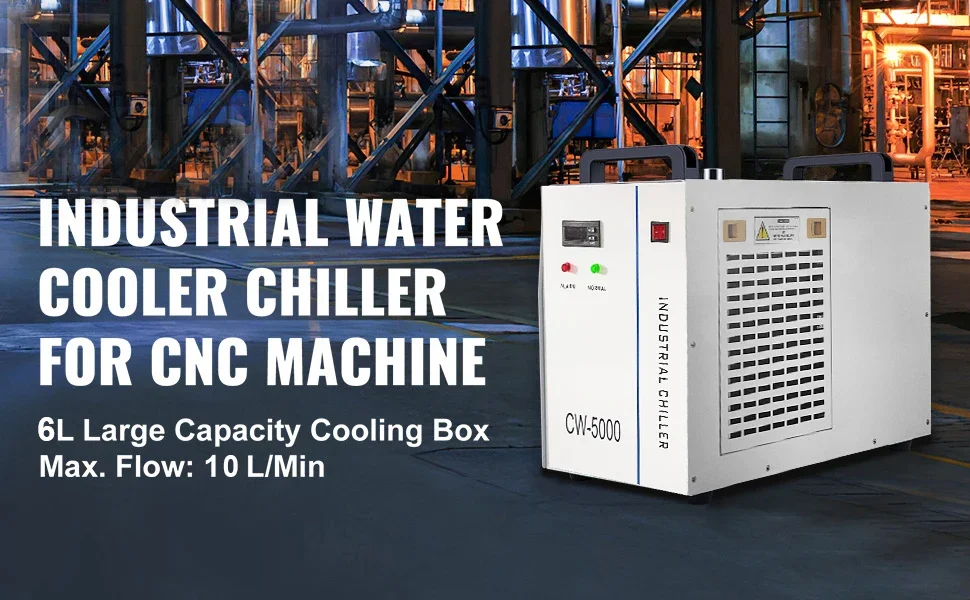

CW-5200 CW-5000 CW-3000 Industrial Water Cooler Chiller
CW series is a professional cooler with a pyrolytic cooling system designed for machinery requiring a small water-cooled cooling unit. It is designed for cooling laser engraving and cutting machines 60W-130W of a CO2 glass laser tube. There are 2 temperature control modes of constant temperature and intelligent temperature(CW-3000 has no intelligent temperature mode). In the intelligent mode, the water temperature is adjusted according to the ambient temperature, without the need to worry about the seasonal change of water temperature adjustment. With compressor over-current protection, flow alarm, over-temperature alarm and many other alarm functions. The built-in cooling fan can effectively ventilate to ensure its high heat dissipation capability. Real-time temperature display to accurately grasp the working status of the laser. One piece injection sealed water tank, once filled with water, long term use, no dust enters to ensure that the pipeline is free of dirty blockage, making the laser equipment run more safely.
  • Dual Cooling Fans

  • Precise Thermostat

  • Multiple Alarm Functions

  • User-friendly Handle

Tough Equipment & Tools, Pay Less
SIHAO is a leading brand that specializes in equipment and tools. Along with thousands of motivated employees, SIHAO is dedicated to providing our customers with tough equipment & tools at incredibly low prices. Today, SIHAO's products are sold in more than 200 countries and regions with 10 million plus members worldwide.
Why Choose SIHAO?
  • Premium Tough Quality

  • Incredibly Low Prices

  • Fast & Secure Delivery

  • 30-Day Free Returns

  • 24/7 Attentive Service

Key Features
6L Cooling Tank Capacity
The water cooler chiller features a stable performance with a 6L large-capacity cooling box. Equipped with a precision scale, you can fill it with water according to the scale. (CW-3000's tank capacity is 9L)
Dual Cooling Fans
The professional forced air cooling radiator inside can quickly take away the heat. The high heat dissipation capability determines that the water-cooled cooler is not easily clogged. Standard R-134a is used as a refrigerant to ensure the laser cutting and engraving machine works smoothly during use. (CW-3000 has one cooling fan)
Precise Thermostat
This CNC machine industrial chiller equips an accurate temperature controller. You can adjust and monitor the real-time temperature accurately to ensure the working status of the machine.
Multiple Alarm Functions
This laser engraver water chiller has various protection, and early warning functions water flow alarm protection, high/low temperature alarm, compressor delay protection as well as compressor over-current protection. These measures can protect the machine from overheating and extend its service life.
User-friendly Handle
Rubber handles are super durable and reliable. The ergonomic design makes it very comfortable to hold, saving time and effort and improving working efficiency.
Wide Application
TCW Series is a professional cooling machine, easy to install and operate, compact, and easily movable. It is designed for cooling one CO2 glass laser tube under 130W/150W(CW-5200) 80W/100W(CW-5000) 60W/80W(CW-3000) of the laser engraving and cutting machine.
Specifications CW-5200
  • Model: CW-5200

  • Voltage: 220V/110V

  • Frequency: 60HZ

  • Current: 1.4~2.1A

  • Water Tank Capacity: 6L

  • Compressor Power: 0.295KW, 0.4HP

  • Refrigeration Capacity: 2361Btu/h, 0.692KW, 595Kcal/h

  • Refrigerant: R-134a

  • Refrigerant Charge: 300g

  • Accuracy: ±0.3℃

  • Decelerator: Capillary tube

  • Pump Power: 0.03KW

  • Maximum Flow: 10 l/min

  • Maximum Pumping Lift: 10m

  • Inlet and Outlet: 10mm outer diameter copper nozzle

  • Package Size: 720x430x580mm (L*W*H)

  • Product Size: 580x290x470mm (L*W*H)

  • Protection Function: compressor over current protection, flow alarm, over temperature alarm

Package Content
  • 1 × CW-5200 Water Chiller

  • 1 × User Manual

  • 1 × Power Cable

  • 2 × Sealing Washer

  • 1 × Alarm Signal Output Plug

  • 1 × Spare Fuse(Installed in the Chiller)

Specifications CW-5000
  • Model: CW-5000

  • Voltage: 220V/110V

  • Frequency: 60HZ

  • Current: 1.4~2.1A

  • Water Tank Capacity: 6L

  • Compressor Power: 0.295KW, 0.4HP

  • Refrigeration Capacity: 2361Btu/h, 0.692KW, 595Kcal/h

  • Refrigerant: R-134a

  • Refrigerant Charge: 300g

  • Accuracy: ±0.3℃

  • Decelerator: Capillary tube

  • Pump power: 0.03KW

  • Maximum Flow: 10 l/min

  • Maximum Pumping Lift: 10m

  • Inlet and Outlet: 10mm outer diameter copper nozzle

  • Package Size: 720x430x580mm (L*W*H)

  • Product Size: 580x290x470mm (L*W*H)

  • Protection Function: compressor over current protection, flow alarm, over temperature alarm

Package Content
  • 1 × CW-5000 Water Chiller

  •

    1 × User Manual

  •

    1 × Power Cable

  •

    2 × Sealing Washer

  •

    1 × Alarm Signal Output Plug

  •

    1 × Spare Fuse(Installed in the Chiller)

Specifications CW-3000
  • Model: CW-3000

  • Voltage: 220V/110V
  • Frequency:50HZ
  • Current: 0.45A
  • Water Tank Capacity: 9L
  • Radiating Capacity: 50W / ℃
  • Circulation Mode: pump power circulation

  • Accuracy: ± 0.1 ° C
  • Maximum Pumping Lift: 8 m
  • Inlet and Outlet: External size 10mm brass connector
  • Package Size: 570*350*470mm (L*W*H)
  • Product Size: 470*270*370mm (L*W*H)
  • Product Weight: 9.5kg
  • Package Weight: 12kg
  • Protection Function: over-temperature alarm

Package Content
  • 1 × CW-3000 Water Chiller

  • 1 × User Manual
  • 1 × Power Cable
  • 2 × Sealing Washer
  • 1 × Alarm Signal Output Plug
